281838-5 | AMP

Socket housing, 5 pole, pitch 2.54 mm, straight, blue, 281838-5

Order No.: 37P8350
EAN: 4099889971743
MPN:
281838-5
Series: AMPMODU

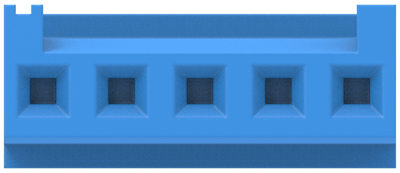

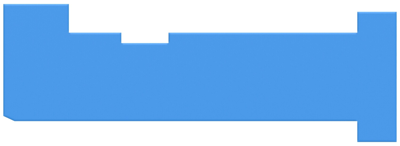

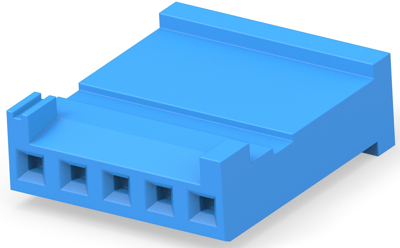

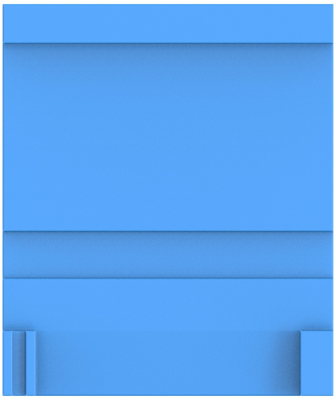

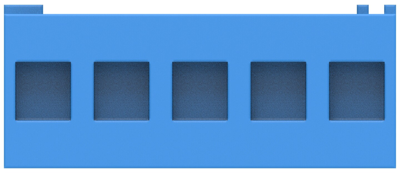

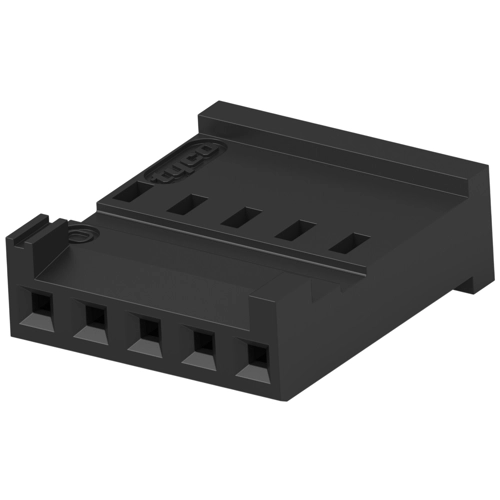

281838-5 AMP PCB Connection Systems Image 1
281838-5 AMP PCB Connection Systems Image 2
281838-5 AMP PCB Connection Systems Image 3
281838-5 AMP PCB Connection Systems Image 4
281838-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 5 Days: 9,800 pcs.
Leadtime: 34 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6545 €
50 pcs.
0.5950 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 281838-5, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GF
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 5
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe blau
Kontaktart Buchse
Nennstrom 3 A
Orientierung gerade
Polzahl 5-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland US
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
