281838-8 | AMP

Socket housing, 8 pole, pitch 2.54 mm, straight, blue, 281838-8

Order No.: 37P8352
EAN: 4099889971767
MPN:
281838-8
Series: AMPMODU

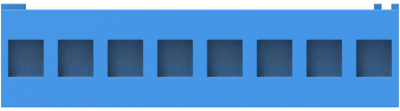

281838-8 AMP PCB Connection Systems Image 1

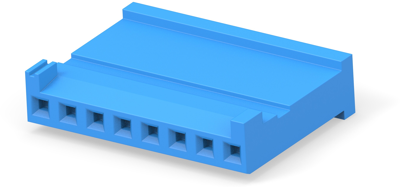

281838-8 AMP PCB Connection Systems Image 2

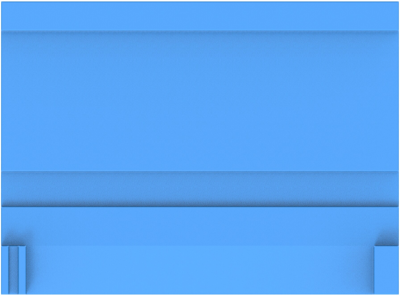

281838-8 AMP PCB Connection Systems Image 3

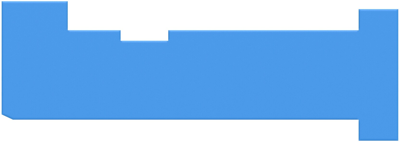

281838-8 AMP PCB Connection Systems Image 4

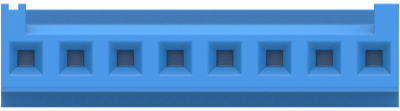

281838-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9401 € *
Available: 140 pcs.
Available in 5 Days: 7,137 pcs.
Leadtime: 36 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
50 pcs.
0.7854 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 281838-8, AMP

Wire-to-Board, Wire & Cable, 8 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GF
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe blau
Kontaktart Buchse
Nennstrom 3 A
Orientierung gerade
Polzahl 8-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland US
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
