292156-2 | AMP

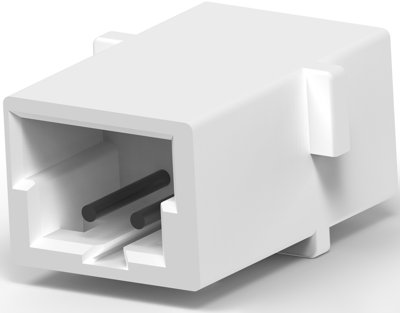

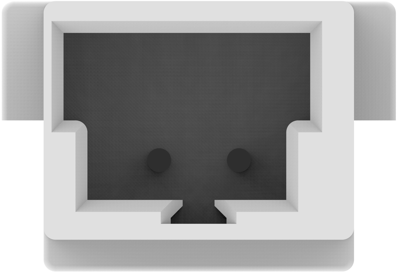

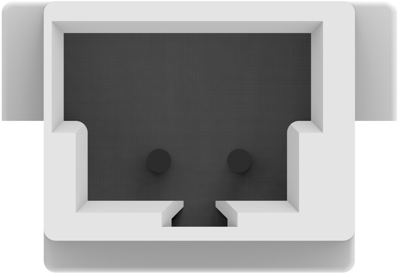

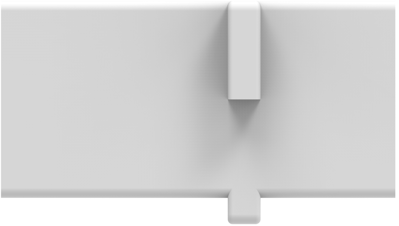

Pin header, 6 pole, pitch 2 mm, straight, white, 292156-2
Order No.: 36P7182
EAN: 4099889947717
MPN:
292156-2
Unit Price (€ / pc.)
0.3570 € *
Available: 0 pcs.
Available in 5 Days: 11,850 pcs.
Leadtime: 6 Weeks **
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
250 pcs.
0.3570 €
1500 pcs.
0.3011 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 292156-2, AMP
Wire-to-Board, Wire-to-Wire, Wire-to-Board Connector Assemblies & Housings, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: white
- Number of positions: 6
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 2 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Connection | solder pin | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | white | |
| Contact type | pin | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Melamine |
