292173-3 | AMP

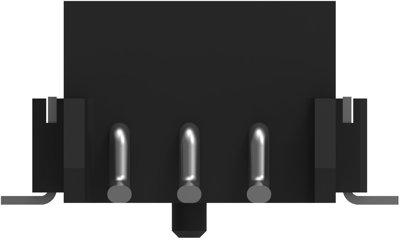

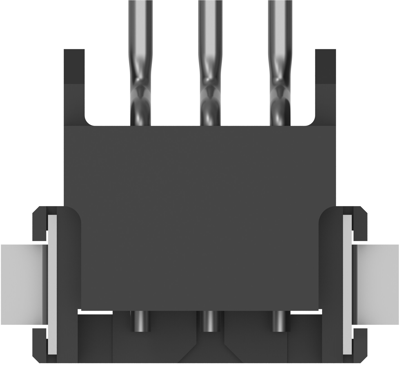

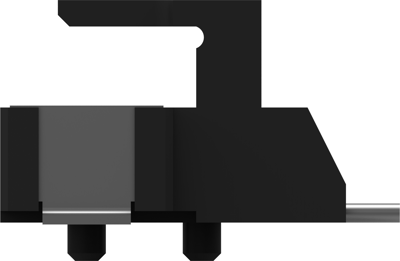

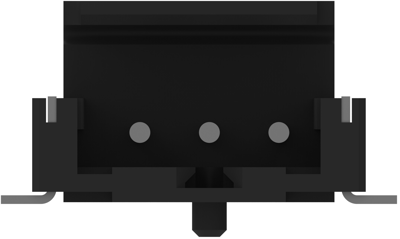

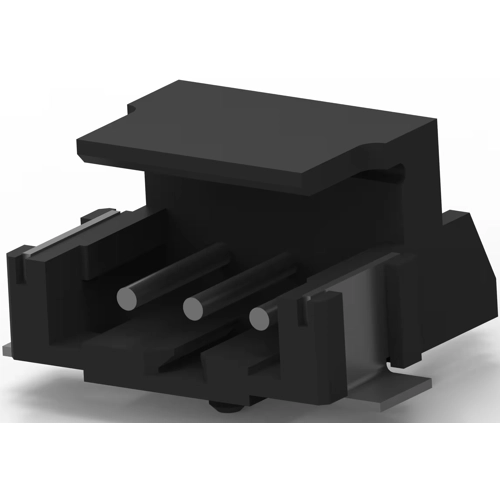

Pin header, 3 pole, pitch 2 mm, angled, black, 292173-3
Order No.: 36P6913
EAN: 4099889946680
MPN:
292173-3
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Available in 5 Days: 7,500 pcs.
Leadtime: 9 Weeks **
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
500 pcs.
0.8806 €
1500 pcs.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 292173-3, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: 6T PA(GF)
- Housing Color: black
- Orientation: angled
- Number of positions: 3
- Operating Temperature Range: -40 – 221 °C [-40 – 105 °F]
- Rated current: 4 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 125 V | |
| Rated current | 4 A | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
