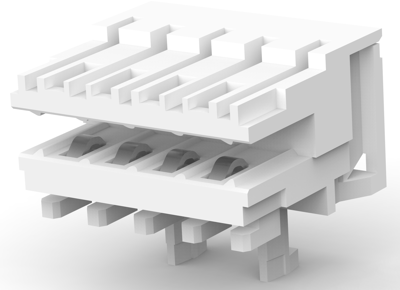

Standard Edge Connectors, 3-1534796-4, AMP
Connector System: Wire-to-Board, Connector & Housing Type: Receptacle, Connector & Contact Terminates To: Printed Circuit Board, Compatible With Wire & Cable Type: Discrete Wire, Number of Positions: 4, Number of Rows: 1, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 50 V, Contact Base Material: Copper Tin, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), PCB Mount Retention: Without, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Entry Configuration: Both Ends Open, Centerline (Pitch): 2.5 mm, Housing Color: Natural, Housing Material: PA 6 GF, Wire Size: .22 – .35 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-2, Packaging Method: Tray
