3-1534796-8 | AMP

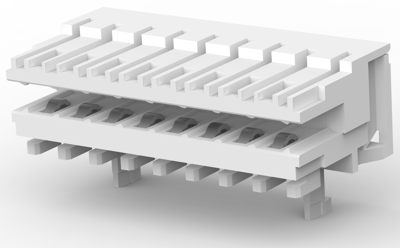

Socket header, 8 pole, pitch 2.5 mm, angled, natural, 3-1534796-8

Order No.: 35P3939
EAN: 4099889931976
MPN:
3-1534796-8
Series: RAST 2.5
3-1534796-8 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Available in 5 Days: 12,866 pcs.
Leadtime: 14 Weeks **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8330 €
50 pcs.
0.7497 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Standard Edge Connectors, 3-1534796-8, AMP

Connector System: Wire-to-Board, Connector & Housing Type: Receptacle, Connector & Contact Terminates To: Printed Circuit Board, Compatible With Wire & Cable Type: Discrete Wire, Number of Positions: 8, Number of Rows: 1, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 250 V, Contact Base Material: Copper Tin, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), PCB Mount Retention: Without, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Entry Configuration: Both Ends Open, Centerline (Pitch): 2.5 mm, Housing Color: Natural, Housing Material: PA 6 GF, Wire Size: .22 – .35 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-2, Packaging Method: Tray

Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsenleiste
Bestückung bestückt
Farbe natur
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 2 A
Orientierung abgewinkelt
Polzahl 8-polig
Rastermaß 2.5 mm
Logistics
Ursprungsland US
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
