3-215297-2 | AMP

Socket header, 32 pole, pitch 2.54 mm, straight, green, 3-215297-2

Order No.: 59F533
EAN: 4099891006211
MPN:
3-215297-2
3-0215297-2
Series: AMPMODU
AMP
3-215297-2 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
7.2590 € *
Available: 29 pcs.
Leadtime: 1 Week **
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2590 €
10 pcs.
6.6759 €
50 pcs.
6.0809 €
100 pcs.
5.4740 €
*incl. VAT plus shipping costs
**Subject to prior sale

Straight socket headers, series HV 100, type TE Connectivity/AMP ..-0215.

With 2.54 mm grid. Single-row or dual-row contact arrangement. With initial point of contact and closed base. Stackable without grid loss. Cranked solder ends for fastening in the PCB perforation; Housing: polyester GV, green, self-extinguishing to UL 94 V-0. Contact material: CuSn. Contact finish: gold-plated on nickel primer, 2.5 µ tin in the solder area.

Single-row, type ..-0215.

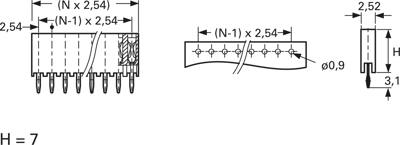

Technical attributes (type, number of poles, overall height (H)): 3-0215297-2, 32-pole, H 7.0 mm

Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour green
Contact type socket
contact surface gold-plated
Rated current 3 A
Orientation straight
Pin number 32 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin NL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
