3-216791-4 | AMP
Pin header, 34 pole, pitch 2.54 mm, straight, gray, 3-216791-4
Solder strips for PCB connection, type ..-0216.
Contacts: tin bronze. The female connectors are delivered ready for operation. Additional available system components: male connectors for insertion in DIP sockets or for direct soldering to printed circuit boards, male connectors for direct soldering to PCBs with 2.54 mm grid and also cable-to-board connectors for direct insertion on PCB traces. Number of poles: 10 to 64. Operating current: max. 1.0 A. Dielectric strength: 500 VAC. Operating temperatures: - 55 to +105 °C. Standards and certifications: DIN 41651, 41611 T6, ULE 28476, MiL-C-83503.
Solder pins with beads, 2.54 mm grid. For direct termination of ribbon cables; Housing: Polyester, gray, self-extinguishing to UL 94 V-0. Contacts: tinned CuSn. Solder pins for 0.8 mm hole diameter.

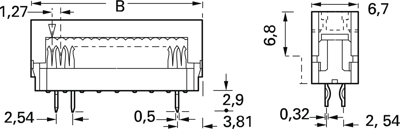

Technical attributes (type, number of poles, dimension B): 3-0216791-4, 34-pole, B 48.3 mm
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | gray | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 34 pole | |
| Grid | 2.54 mm |
| Country of origin | CN |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
