3-6318490-6 | AMP

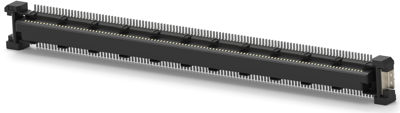

Socket header, 220 pole, pitch 0.5 mm, straight, black, 3-6318490-6
Unit Price (€ / pc.)
29.1550 € *
Available: 0 pcs.
Available in 5 Days: 64,545 pcs.
Leadtime: 15 Weeks **
Total Price:
29.16 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1550 €
10 pcs.
26.8226 €
25 pcs.
24.1451 €
50 pcs.
21.7294 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-6318490-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 220 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 220
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.5 mm
- PCB Mount Retention: With
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 50 V | |
| Rated current | 500 mA | |
| Orientation | gerade | |
| Pin number | 220-polig | |
| Grid | 0.5 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
