3-640426-8 | AMP

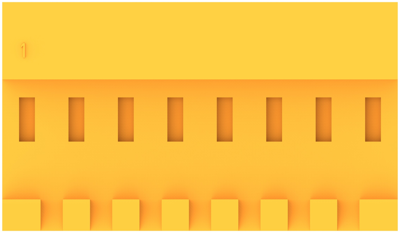

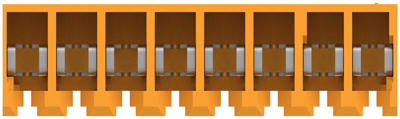

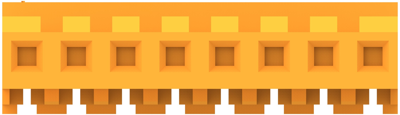

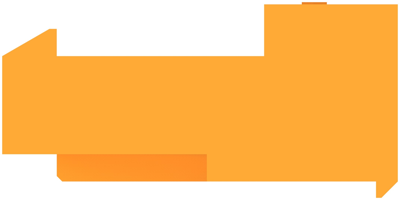

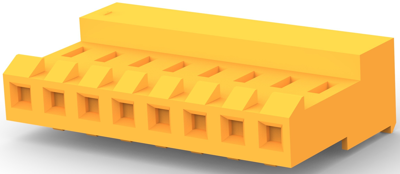

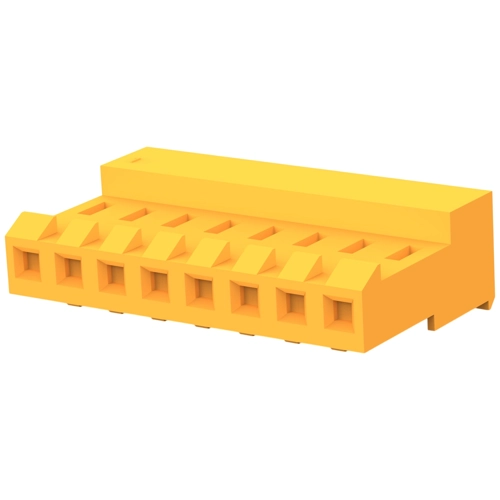

Socket housing, 8 pole, pitch 3.96 mm, straight, orange, 3-640426-8
Unit Price (€ / pc.)
1.3447 € *
Available: 20 pcs.
Leadtime: 22 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2257 €
50 pcs.
1.1067 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-640426-8, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 600 V | |
| Nennstrom | 7 A | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 3.96 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
