3-640440-8 | AMP

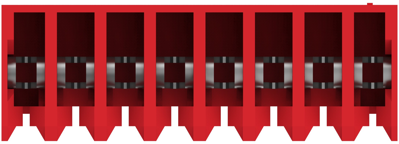

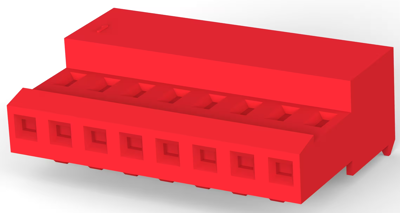

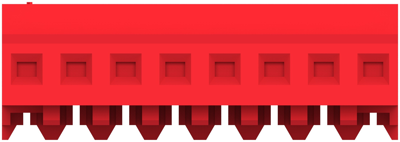

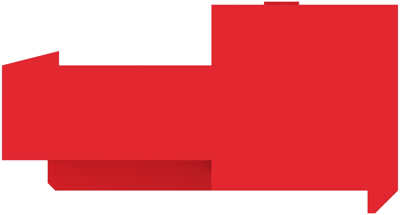

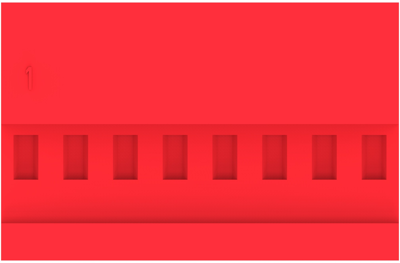

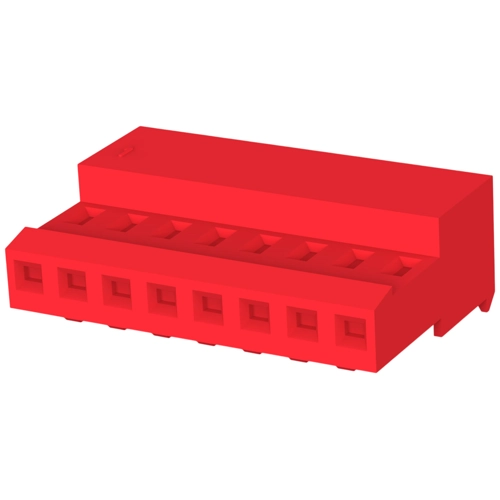

Socket housing, 8 pole, pitch 2.54 mm, angled, red, 3-640440-8
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Available in 5 Days: 5,823 pcs.
Leadtime: 38 Weeks **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
200 pcs.
0.4522 €
1000 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-640440-8, AMP
Wire-to-Board, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | bestückt | |
| Farbe | rot | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 8-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
