3-641192-4 | AMP

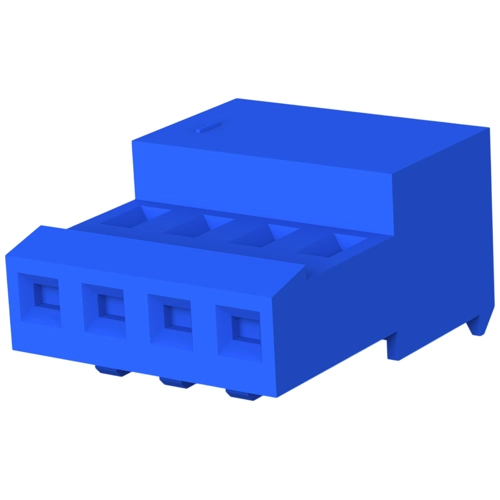

Socket housing, 4 pole, pitch 2.54 mm, angled, blue, 3-641192-4

Order No.: 35P1995
EAN: 4099889929652
MPN:
3-641192-4
Series: MTA-100

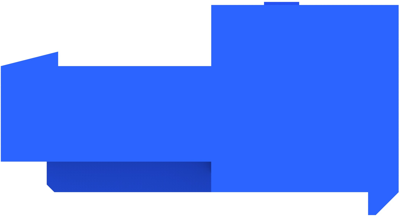

3-641192-4 AMP PCB Connection Systems Image 1

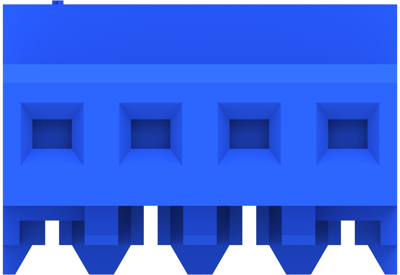

3-641192-4 AMP PCB Connection Systems Image 2

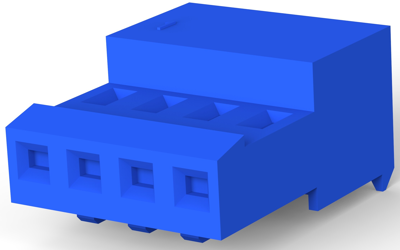

3-641192-4 AMP PCB Connection Systems Image 3

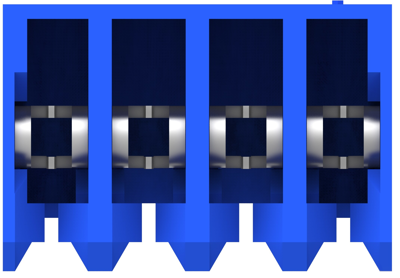

3-641192-4 AMP PCB Connection Systems Image 4

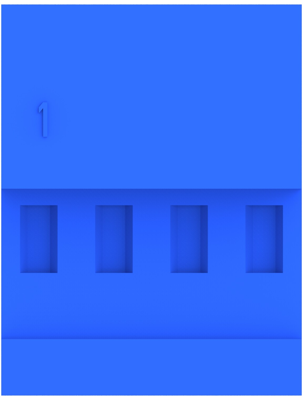

3-641192-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
19,813.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
1.3209 €

PCB Connection System, 3-641192-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: blue
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection Schneidklemmanschluss
Number of rows 1
Version Buchsengehäuse
Additional parts bestückt
Colour blau
Contact type Buchse
contact surface vergoldet
Rated voltage 250 V
Rated current 5 A
Orientation abgewinkelt
Pin number 4-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
