3-641208-9 | AMP

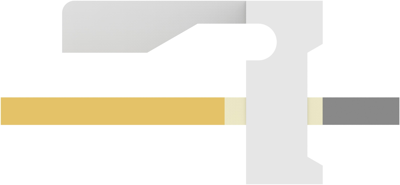

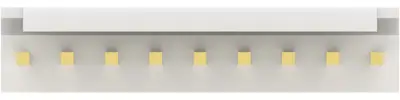

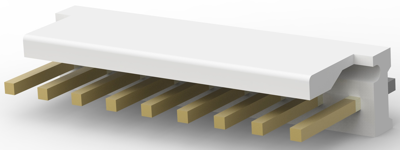

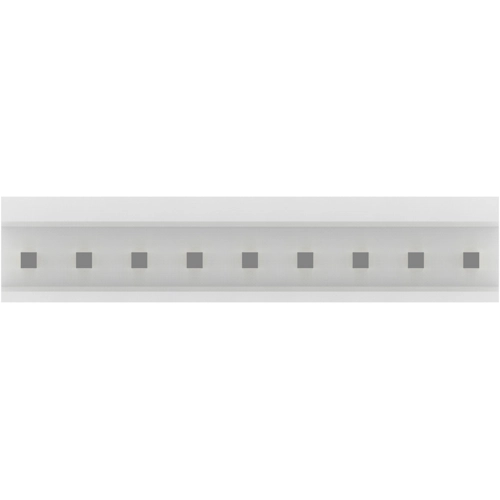

Pin header, 9 pole, pitch 3.96 mm, straight, natural, 3-641208-9
Unit Price (€ / pc.)
3.0226 € *
Available: 0 pcs.
Available in 5 Days: 380 pcs.
Leadtime: 8 Weeks **
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
30 pcs.
3.0226 €
150 pcs.
2.9750 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-641208-9, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 9 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Tab
- Contact Base Material: Copper Alloy
- Housing Material: Polyester
- Housing Color: natural
- Orientation: straight
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Grid | 3.96 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
