3-641217-9 | AMP

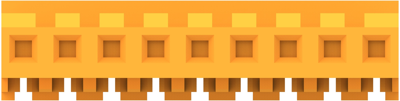

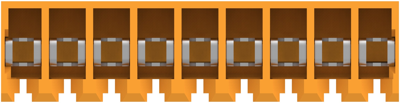

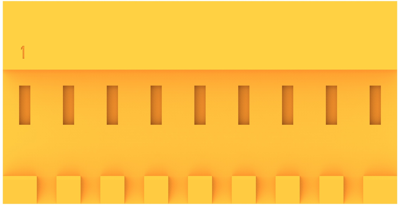

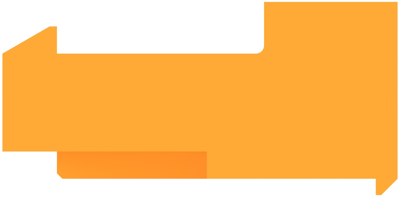

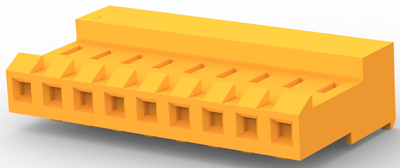

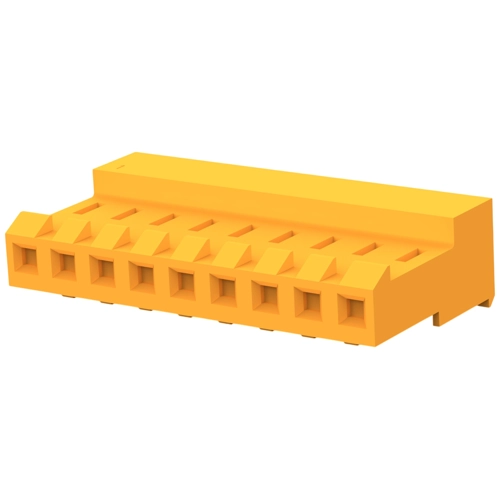

Socket housing, 9 pole, pitch 3.96 mm, straight, orange, 3-641217-9
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Available in 5 Days: 1,297 pcs.
Leadtime: 13 Weeks **
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0575 €
10 pcs.
4.6529 €
50 pcs.
4.1888 €
100 pcs.
3.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-641217-9, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | vergoldet | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | gerade | |
| Pin number | 9-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
