3-641438-3 | AMP

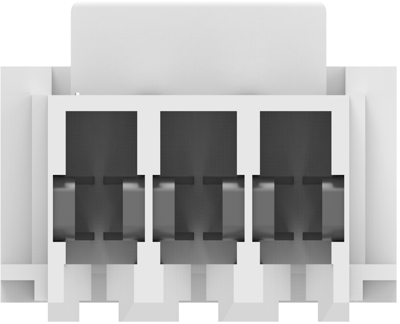

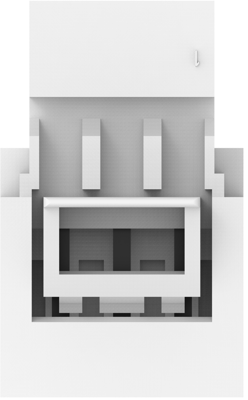

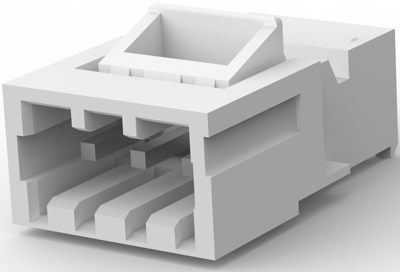

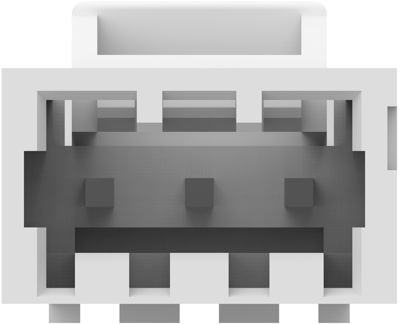

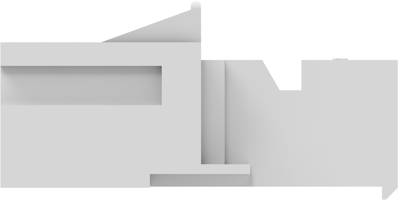

Pin header, 3 pole, pitch 3.96 mm, angled, white, 3-641438-3
Order No.: 35P1235
EAN: 4099889923636
MPN:
3-641438-3
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-641438-3, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Grid | 3.96 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
