3-641537-2 | AMP

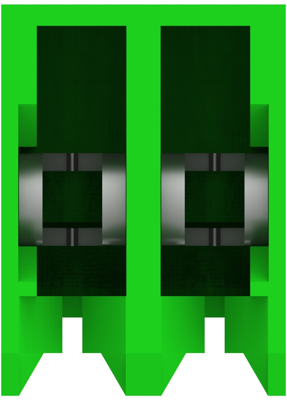

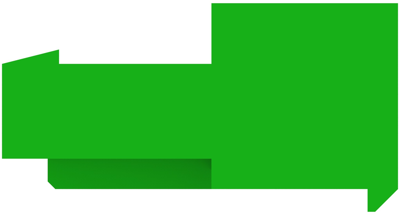

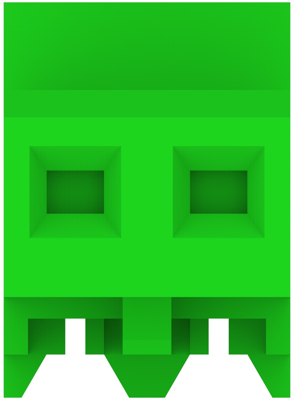

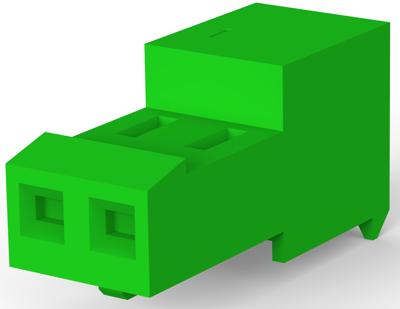

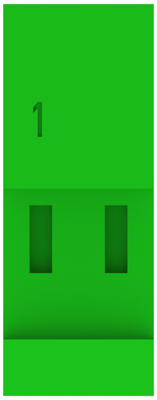

Socket housing, 2 pole, pitch 2.54 mm, angled, green, 3-641537-2
Unit Price (€ / pc.)
0.2118 € *
Available: 0 pcs.
Leadtime: 38 Weeks **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2118 €
10 pcs.
0.1928 €
100 pcs.
0.1725 €
500 pcs.
0.1547 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-641537-2, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: green
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket housing | |
| Additional parts | equipped | |
| Colour | green | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | angled | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
