3-644042-5 | AMP

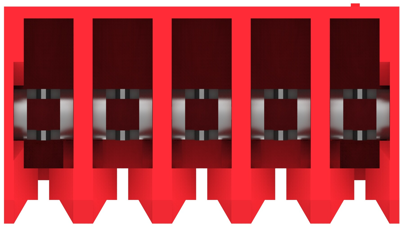

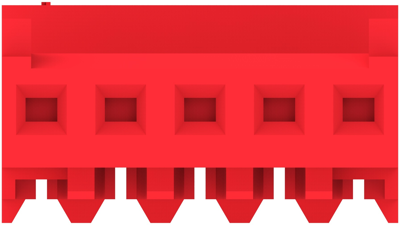

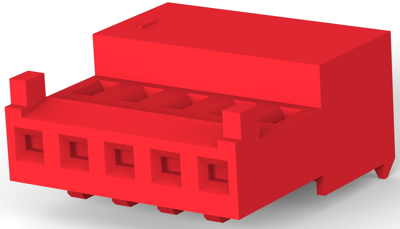

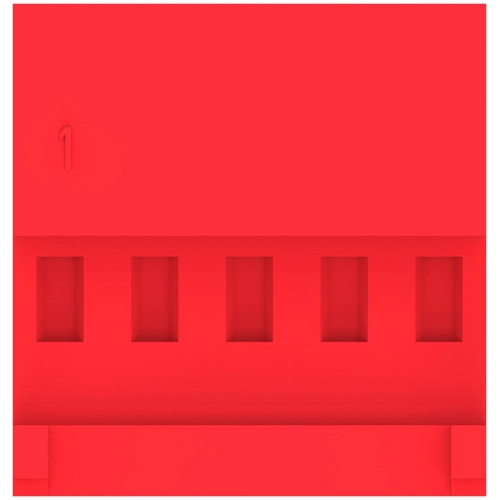

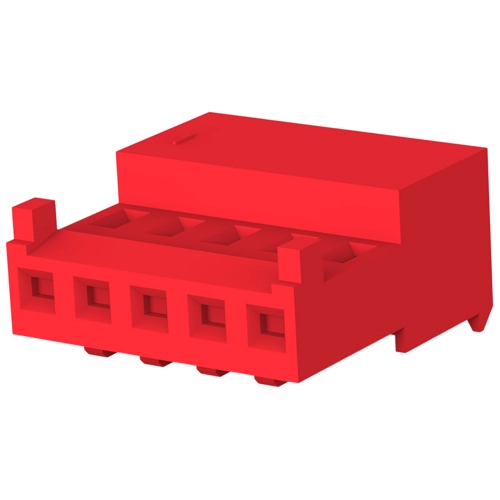

Socket housing, 5 pole, pitch 2.54 mm, angled, red, 3-644042-5
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 38 Weeks **
PCB Connection System, 3-644042-5, AMP
Wire-to-Board, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: red
- Number of positions: 5
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | bestückt | |
| Farbe | rot | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 5-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
