3-644464-5 | AMP

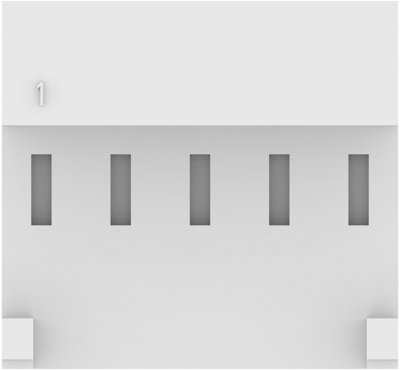

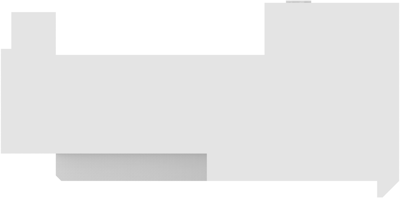

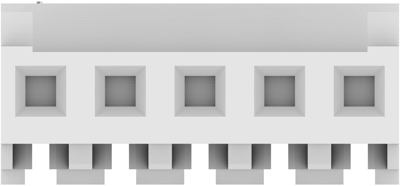

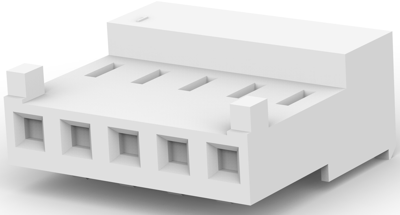

Socket housing, 5 pole, pitch 3.96 mm, straight, white, 3-644464-5
Order No.: 35P1302
EAN: 4099889924282
MPN:
3-644464-5
Unit Price (€ / pc.)
0.2594 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
PCB Connection System, 3-644464-5, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 5
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | bestückt | |
| Colour | weiß | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 3.96 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
