3-644486-0 | AMP

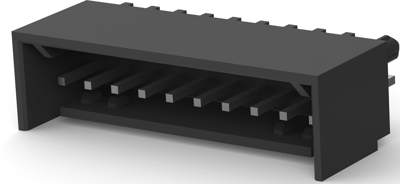

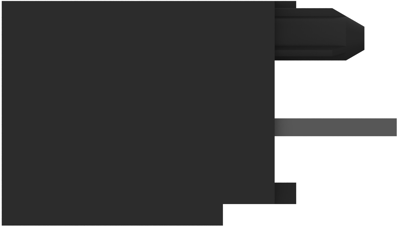

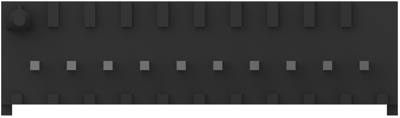

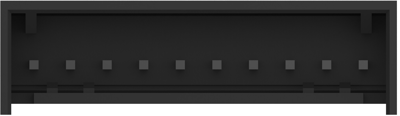

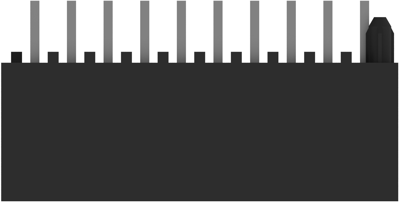

Pin header, 10 pole, pitch 2.54 mm, straight, black, 3-644486-0
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 3-644486-0, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Klemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | gerade | |
| Polzahl | 10-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
