3-644575-5 | AMP

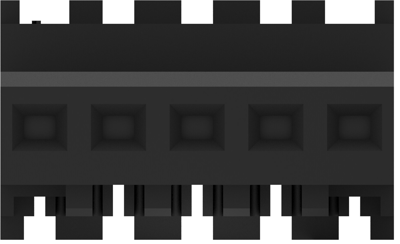

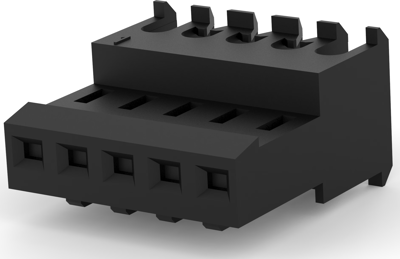

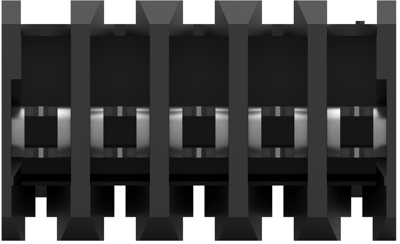

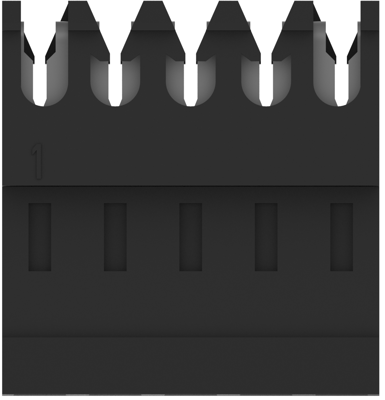

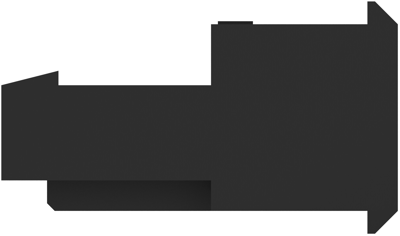

Socket header, 5 pole, pitch 2.54 mm, straight, black, 3-644575-5
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Available in 5 Days: 2,020 pcs.
Leadtime: 20 Weeks **
Total Price:
197.54 € *
Price list
Quantity
Price per unit*
200 pcs.
0.9877 €
500 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector assembly, 3-644575-5, AMP
The 3-644575-5 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
