3-644860-4 | AMP

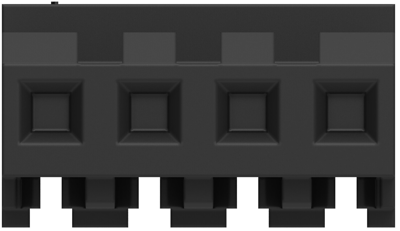

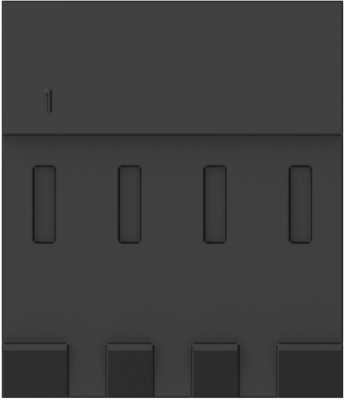

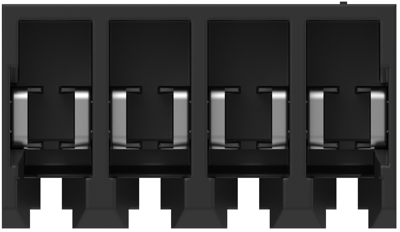

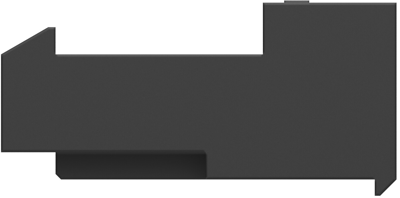

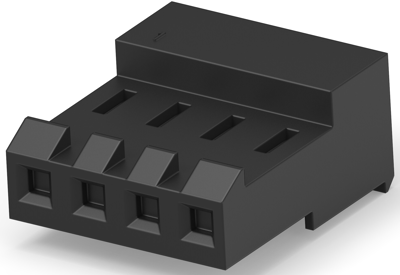

Socket housing, 4 pole, pitch 3.96 mm, straight, black, 3-644860-4
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Connection System, 3-644860-4, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 600 V | |
| Nennstrom | 7 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 3.96 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
