3-647002-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, angled, blue, 3-647002-8

Order No.: 35P2149
EAN: 4099889930627
MPN:
3-647002-8
Series: MTA-100

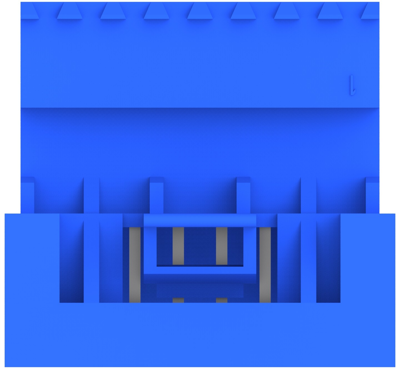

3-647002-8 AMP PCB Connection Systems Image 1

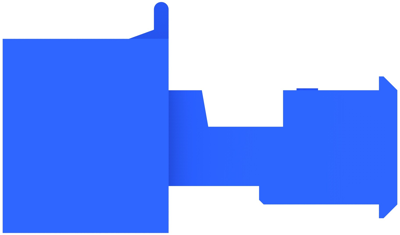

3-647002-8 AMP PCB Connection Systems Image 2

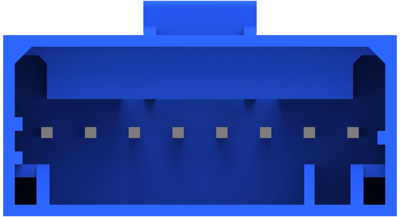

3-647002-8 AMP PCB Connection Systems Image 3

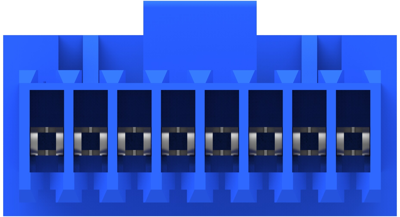

3-647002-8 AMP PCB Connection Systems Image 4

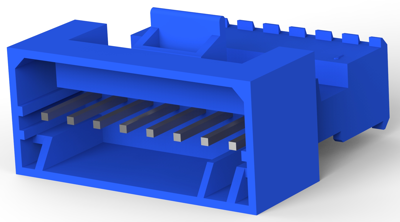

3-647002-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available: 0 pcs.
Available in 5 Days: 1,600 pcs.
Leadtime: 22 Weeks **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5589 €
50 pcs.
1.4042 €
100 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 3-647002-8, AMP

Wire-to-Wire, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon 6/6
  • Housing Color: blue
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe blau
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 8-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland IT
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
