3-917808-2 | AMP

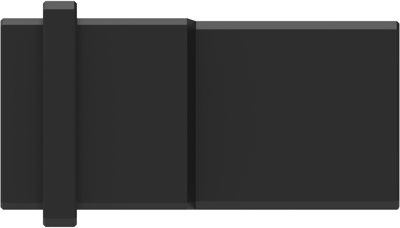

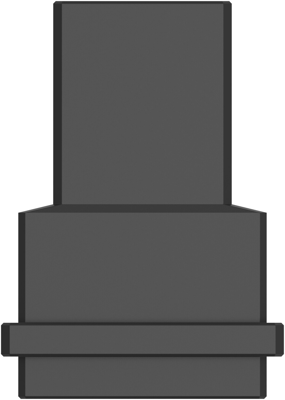

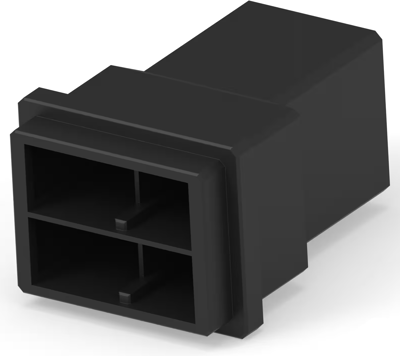

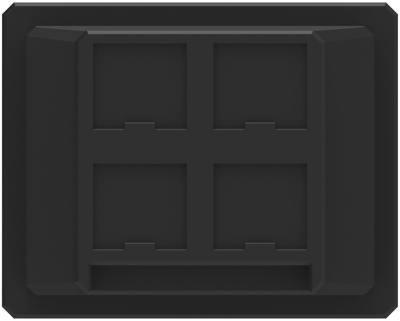

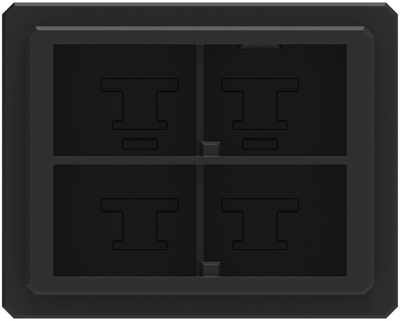

Plug housing, 4 pole, pitch 10.16 mm, straight, black, 3-917808-2
Unit Price (€ / pc.)
6.8544 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 3-917808-2, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 10.16 mm
- Row-to-Row Spacing: 10.16 mm [0.399 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Nennspannung | 630 V | |
| Nennstrom | 30 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 10.16 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
