316501-1 | AMP

Plug housing, 4 pole, pitch 3.96 mm, straight, natural, 316501-1

Order No.: 34P6165
EAN: 4099889910858
MPN:
316501-1

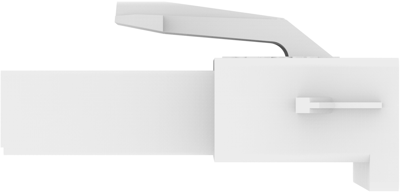

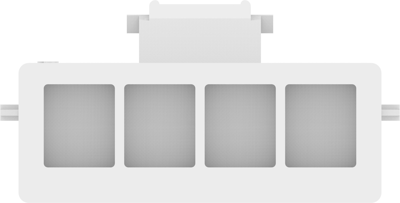

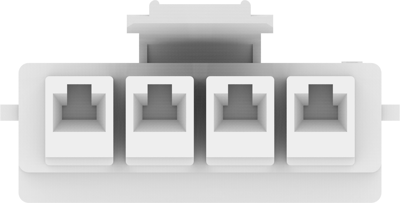

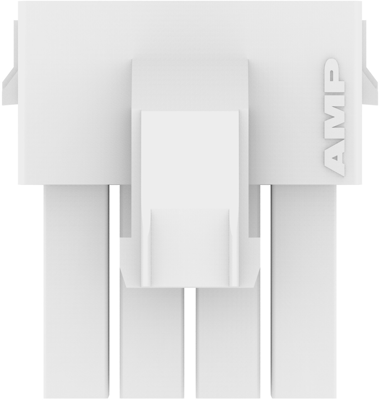

316501-1 AMP PCB Connection Systems Image 1
316501-1 AMP PCB Connection Systems Image 2
316501-1 AMP PCB Connection Systems Image 3
316501-1 AMP PCB Connection Systems Image 4
316501-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Available in 5 Days: 713 pcs.
Leadtime: 23 Weeks **
Total Price:
197.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
353 pcs.
0.5593 €

PCB Connection System, 316501-1, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse
Nennspannung 300 V
Orientierung gerade
Polzahl 4-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
