350214-1 | AMP

Pin header, 16 pole, pitch 4.95 mm, straight, natural, 350214-1

Order No.: 34P6569
EAN: 4099889912234
MPN:
350214-1

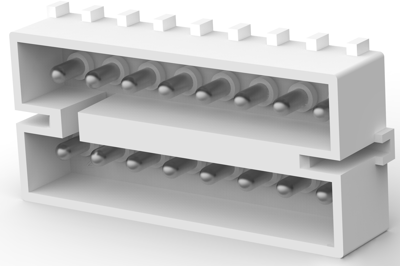

350214-1 AMP PCB Connection Systems Image 1

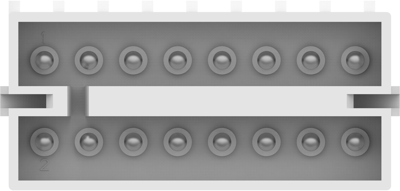

350214-1 AMP PCB Connection Systems Image 2

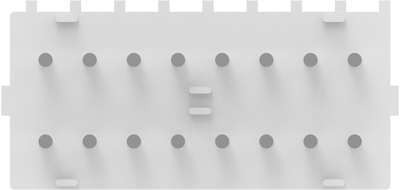

350214-1 AMP PCB Connection Systems Image 3

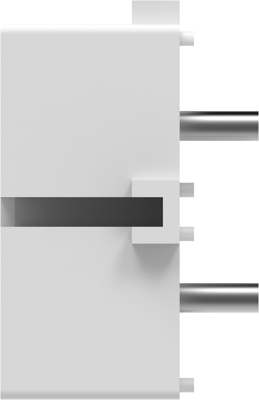

350214-1 AMP PCB Connection Systems Image 4

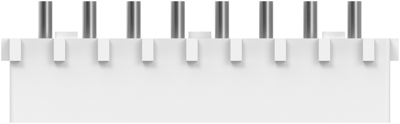

350214-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.2840 € *
Available: 0 pcs.
Available in 5 Days: 95 pcs.
Leadtime: 21 Weeks **
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
10 pcs.
3.9508 €
50 pcs.
3.5462 €
100 pcs.
3.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 350214-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 16
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 4.95 mm
  • Row-to-Row Spacing: 9.14 mm [0.36 in]
  • Sealable: No
Technical specifications
Anschluss Lötstift
Anschlussoberfläche vorverzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche vorverzinnt
Nennspannung 250 V
Nennstrom 12 A
Orientierung gerade
Polzahl 16-polig
Rastermaß 4.95 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
