350425-1 | AMP

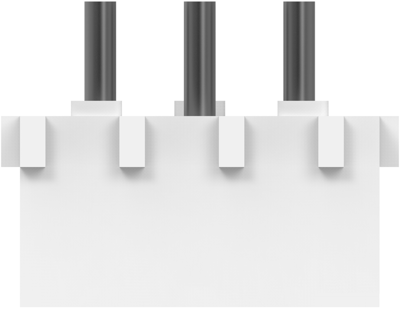

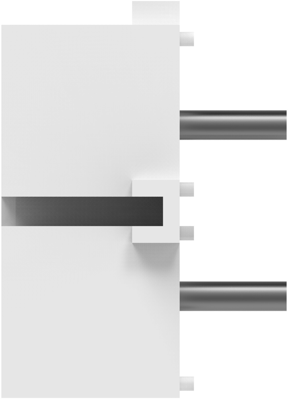

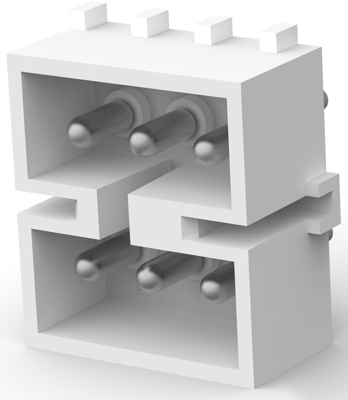

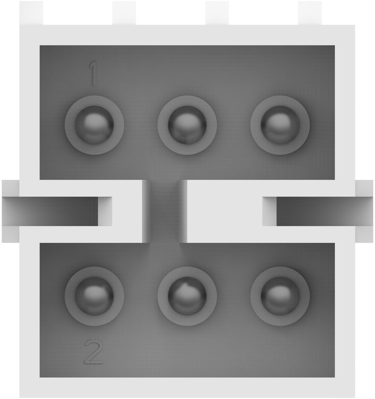

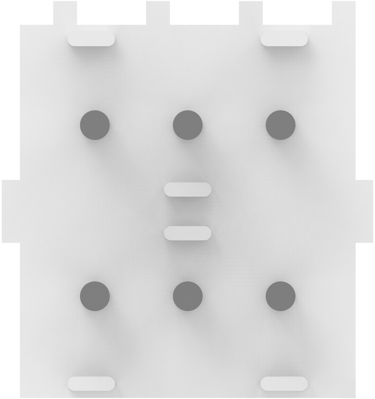

Pin header, 6 pole, pitch 4.95 mm, straight, natural, 350425-1
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
PCB Connection System, 350425-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 4.95 mm
- Row-to-Row Spacing: 9.14 mm [0.36 in]
- Sealable: No
Technical specifications
| Connection | Lötstift | |
| Connection plating | vorverzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | vorverzinnt | |
| Rated voltage | 250 V | |
| Rated current | 12 A | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Grid | 4.95 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
