350426-1 | AMP

Pin header, 8 pole, pitch 4.95 mm, straight, natural, 350426-1

Order No.: 34P6564
EAN: 4099889912180
MPN:
350426-1

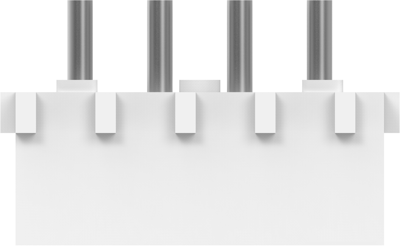

350426-1 AMP PCB Connection Systems Image 1

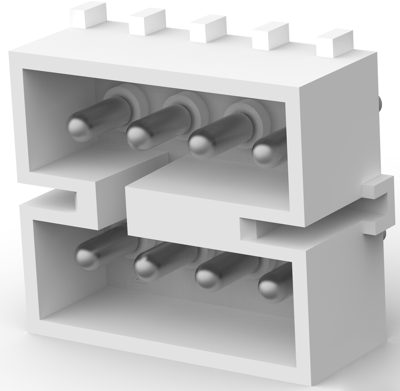

350426-1 AMP PCB Connection Systems Image 2

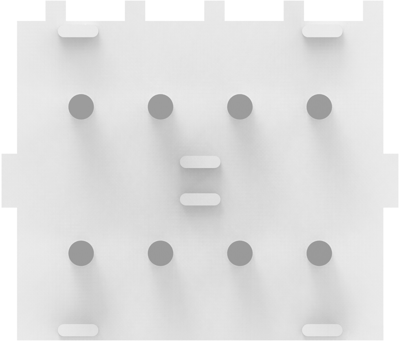

350426-1 AMP PCB Connection Systems Image 3

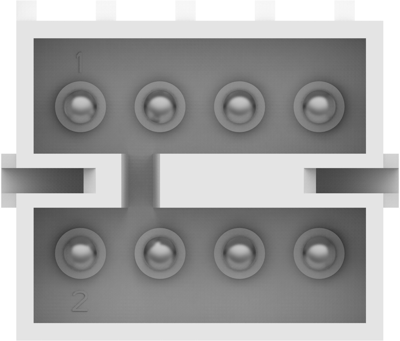

350426-1 AMP PCB Connection Systems Image 4

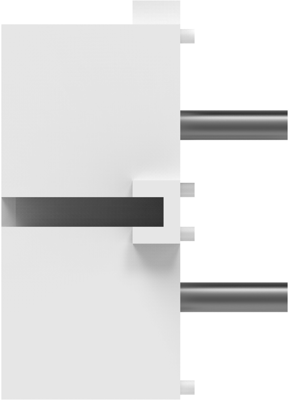

350426-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
2,522.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
1.2614 €

PCB Connection System, 350426-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 4.95 mm
  • Row-to-Row Spacing: 9.14 mm [0.36 in]
  • Sealable: No
Technical specifications
Connection solder pin
Connection plating pre-tinned
Number of rows 2
Version pin header
Additional parts equipped
Colour natural
Contact type pin
contact surface pre-tinned
Rated voltage 250 V
Rated current 12 A
Orientation straight
Pin number 8 pole
Grid 4.95 mm
Type of locking Yes
Logistics
Country of origin MX
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
