350738-1 | AMP

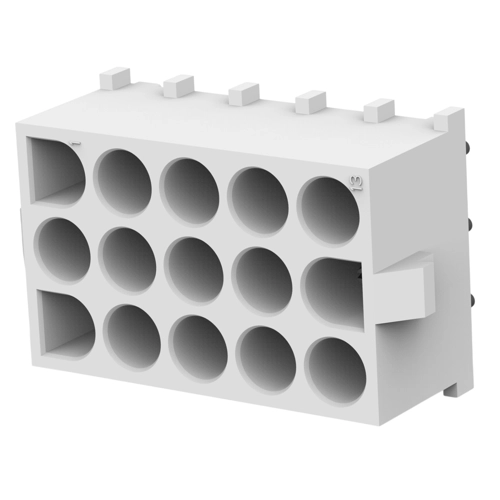

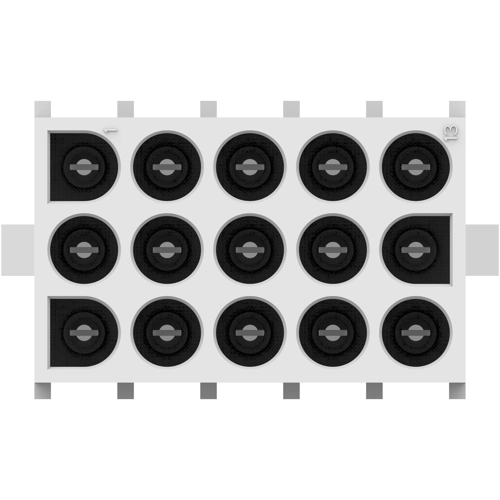

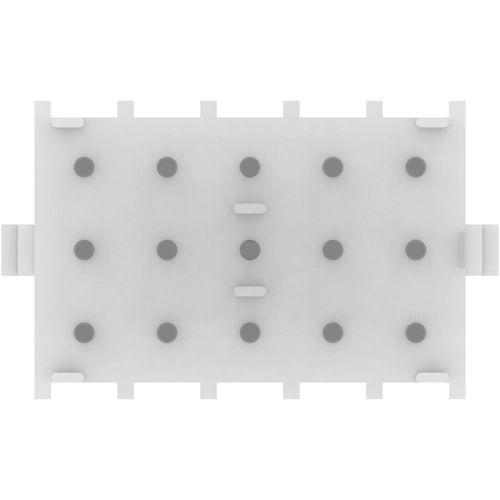

Pin header, 15 pole, pitch 6.35 mm, straight, natural, 350738-1
As a private customer, you can buy this item as soon as we have it back in stock.
PCB Connection System, 350738-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 15 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 15
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | Lötstift | |
| Connection plating | vorverzinnt | |
| Number of rows | 3 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | vorverzinnt | |
| Rated voltage | 600 V | |
| Rated current | 12 A | |
| Orientation | gerade | |
| Pin number | 15-polig | |
| Grid | 6.35 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
