350809-3 | AMP

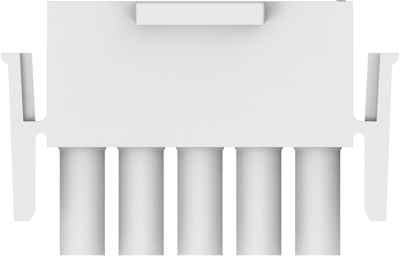

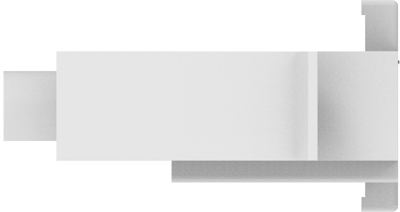

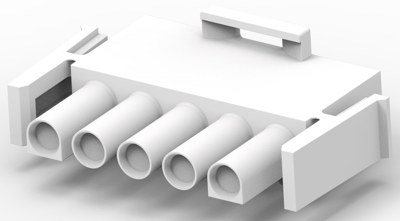

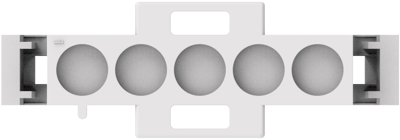

Plug housing, 5 pole, pitch 6.35 mm, straight, natural, 350809-3
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 350809-3, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PA 66
- Housing Color: natural
- Number of positions: 5
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 19 A | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Rastermaß | 6.35 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | SG |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
