4-1123722-3 | AMP

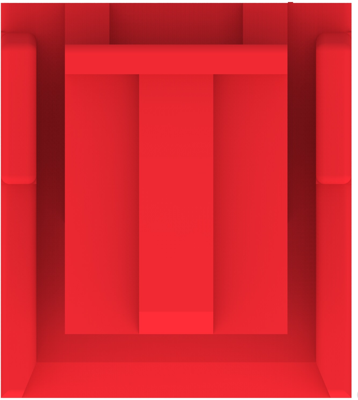

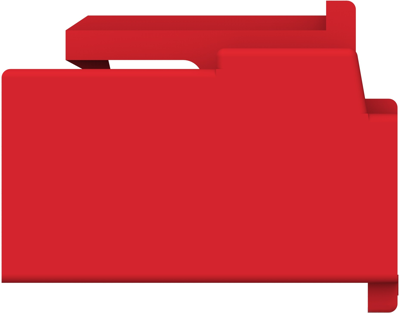

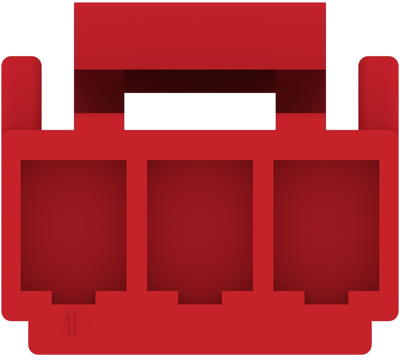

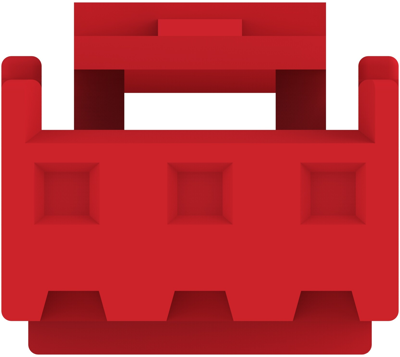

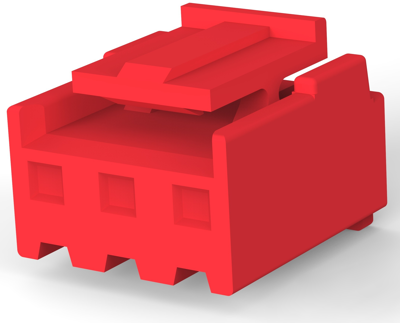

Plug housing, 3 pole, pitch 3.96 mm, straight, red, 4-1123722-3
Unit Price (€ / pc.)
0.0488 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 4-1123722-3, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon 66
- Housing Color: red
- Number of positions: 3
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
