4-1470209-8 | AMP

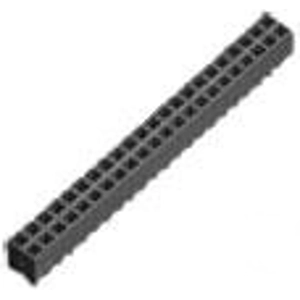

Socket header, 50 pole, pitch 2 mm, straight, black, 4-1470209-8
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
PCB Connection System, 4-1470209-8, AMP
Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 50 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 50
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 1 A
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.079 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | solder pin | |
| Connection plating | gold-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 50 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
