4-640440-6 | AMP

Socket housing, 16 pole, pitch 2.54 mm, angled, red, 4-640440-6

Order No.: 35P2225
EAN: 4099889931143
MPN:
4-640440-6
Series: MTA-100

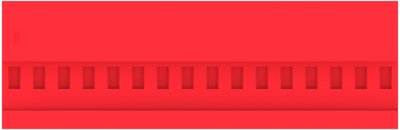

4-640440-6 AMP PCB Connection Systems Image 1

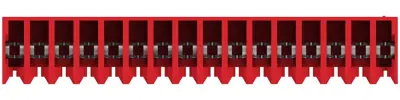

4-640440-6 AMP PCB Connection Systems Image 2
4-640440-6 AMP PCB Connection Systems Image 3

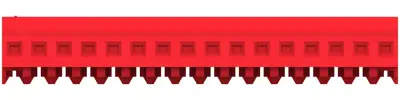

4-640440-6 AMP PCB Connection Systems Image 4

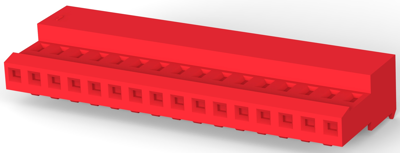

4-640440-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.9988 € *
Available: 0 pcs.
Available in 5 Days: 855 pcs.
Leadtime: 38 Weeks **
Total Price:
11,995.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
2.9988 €

PCB Connection System, 4-640440-6, AMP

Wire-to-Board, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung bestückt
Farbe rot
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 16-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
