4-640441-6 | AMP

Socket housing, 16 pole, pitch 2.54 mm, angled, white, 4-640441-6

Order No.: 35P2230
EAN: 4099889931174
MPN:
4-640441-6
Series: MTA-100

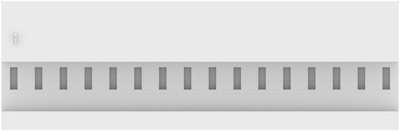

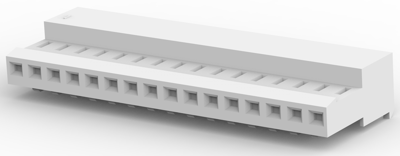

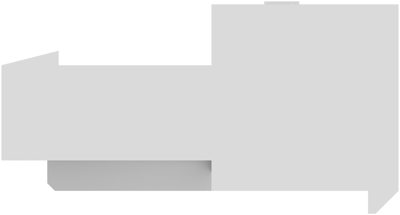

4-640441-6 AMP PCB Connection Systems Image 1
4-640441-6 AMP PCB Connection Systems Image 2
4-640441-6 AMP PCB Connection Systems Image 3
4-640441-6 AMP PCB Connection Systems Image 4
4-640441-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 38 Weeks **
Total Price:
4.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9028 €

PCB Connection System, 4-640441-6, AMP

Wire-to-Board, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: white
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung bestückt
Farbe weiß
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 16-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
