4-640620-2 | AMP

Socket housing, 12 pole, pitch 2.54 mm, angled, red, 4-640620-2

Order No.: 35P2196
EAN: 4099889930931
MPN:
4-640620-2
Series: MTA-100

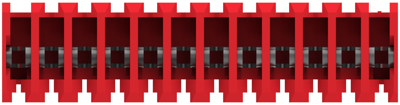

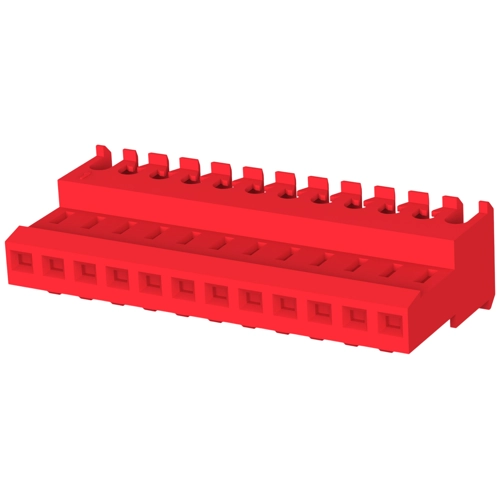

4-640620-2 AMP PCB Connection Systems Image 1

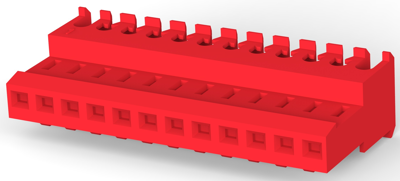

4-640620-2 AMP PCB Connection Systems Image 2

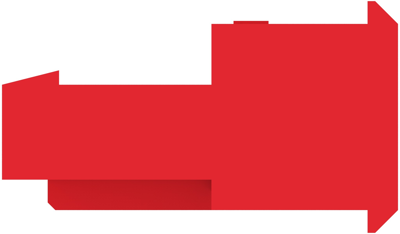

4-640620-2 AMP PCB Connection Systems Image 3

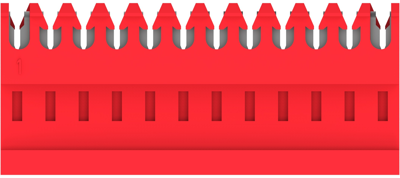

4-640620-2 AMP PCB Connection Systems Image 4

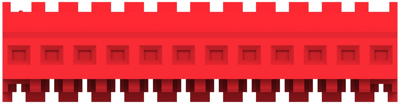

4-640620-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 34 Weeks **
Total Price:
2,023.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.4046 €

PCB Connection System, 4-640620-2, AMP

Wire-to-Board, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection Schneidklemmanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsengehäuse
Additional parts bestückt
Colour rot
Contact type Buchse
contact surface verzinnt
Rated voltage 250 V
Rated current 5 A
Orientation abgewinkelt
Pin number 12-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
