4-641210-0 | AMP

Pin header, 10 pole, pitch 3.96 mm, straight, natural, 4-641210-0

Order No.: 35P1102
EAN: 4099889922363
MPN:
4-641210-0
Series: MTA-156

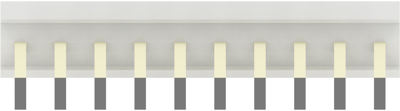

4-641210-0 AMP PCB Connection Systems Image 1

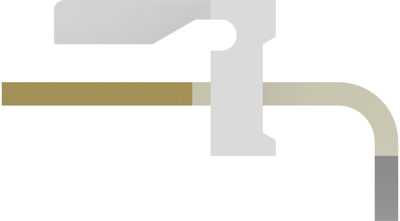

4-641210-0 AMP PCB Connection Systems Image 2

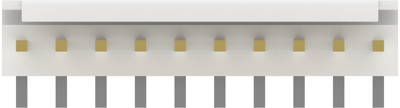

4-641210-0 AMP PCB Connection Systems Image 3

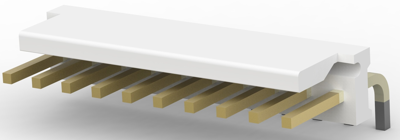

4-641210-0 AMP PCB Connection Systems Image 4

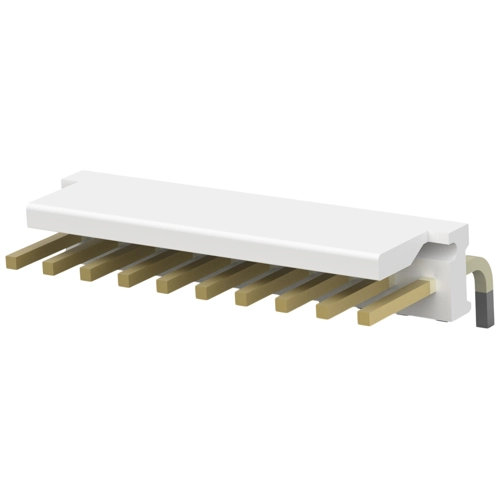

4-641210-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
12.5664 € *
Available: 0 pcs.
Available in 5 Days: 2,809 pcs.
Leadtime: 24 Weeks **
Total Price:
12.57 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5664 €
10 pcs.
11.5668 €
50 pcs.
10.4125 €
100 pcs.
9.3653 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 4-641210-0, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Lötstift
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour natur
Contact type Stift
contact surface vergoldet
Rated voltage 600 V
Rated current 7 A
Orientation gerade
Pin number 10-polig
Grid 3.96 mm
Type of locking Ja
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
