4-643498-0 | AMP

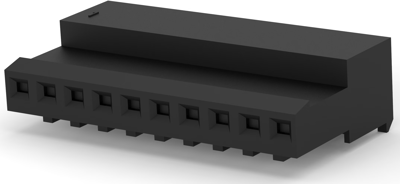

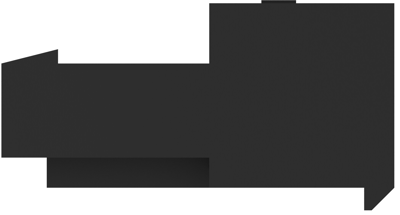

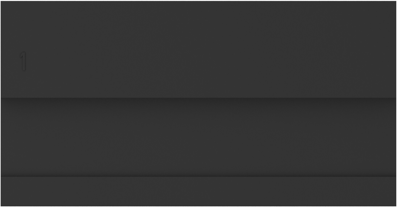

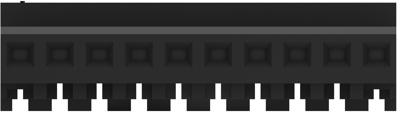

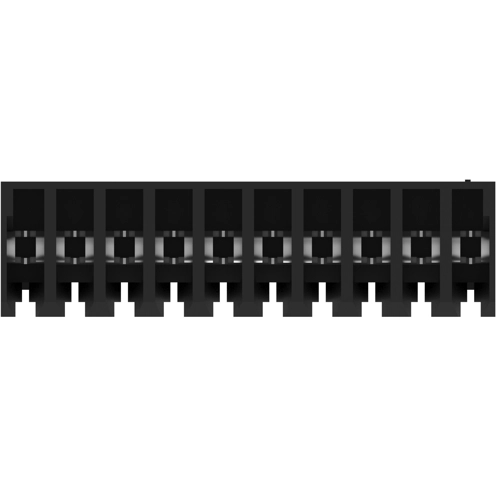

Socket header, 10 pole, pitch 2.54 mm, straight, black, 4-643498-0
Unit Price (€ / pc.)
1.8445 € *
Available: 0 pcs.
Available in 5 Days: 3,690 pcs.
Leadtime: 21 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
49 pcs.
1.8445 €
250 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector assembly, 4-643498-0, AMP
The 4-643498-0 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
