4-6450831-7 | AMP

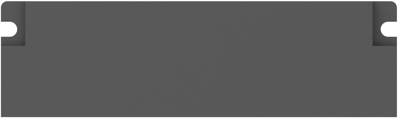

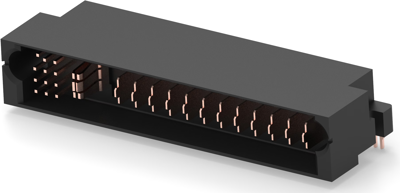

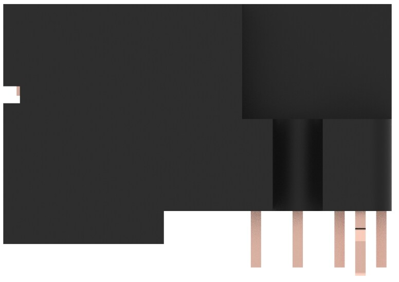

Pin header, 26 pole, pitch 2.54 mm, angled, black, 4-6450831-7
Order No.: 71P9131
EAN: 4099891734091
MPN:
4-6450831-7
Unit Price (€ / pc.)
29.0479 € *
Available: 0 pcs.
Available in 5 Days: 12,936 pcs.
Leadtime: 9 Weeks **
Total Price:
29.05 € *
Price list
Quantity
Price per unit*
4 pcs.
29.0479 €
15 pcs.
26.7750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 4-6450831-7, AMP
Rectangular power connector, Header, Plug, Board-to-Board, 26 Position, 2.54 mm / 4.19 mm Centerline, Printed circuit board.
Technical specifications
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Number of rows | 4 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 60 V | |
| Rated current | 50 A | |
| Orientation | angled | |
| Pin number | 26 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
