4-647016-0 | AMP

Plug housing, 10 pole, pitch 2.54 mm, angled, red, 4-647016-0

Order No.: 35P2185
EAN: 4099889930849
MPN:
4-647016-0

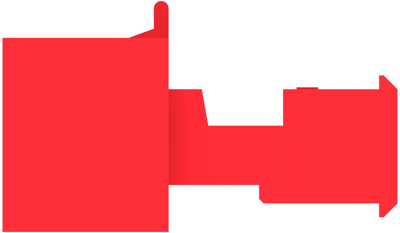

4-647016-0 AMP PCB Connection Systems Image 1

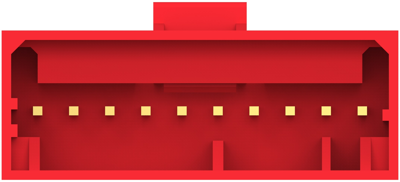

4-647016-0 AMP PCB Connection Systems Image 2

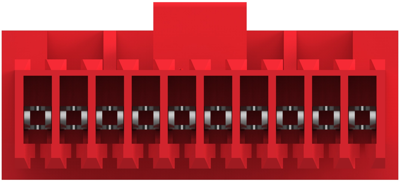

4-647016-0 AMP PCB Connection Systems Image 3

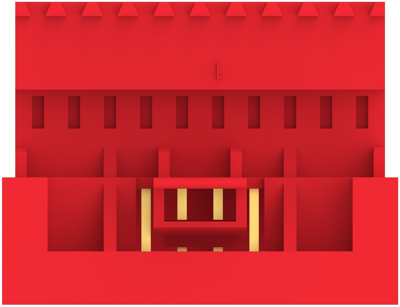

4-647016-0 AMP PCB Connection Systems Image 4

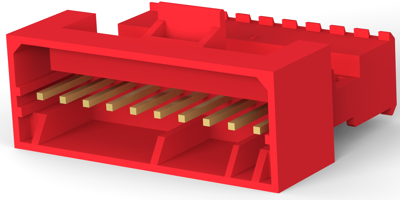

4-647016-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
830.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
750 pcs.
1.1067 €

PCB Connection System, 4-647016-0, AMP

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection Schneidklemmanschluss
Connection plating verzinnt
Number of rows 1
Version Steckergehäuse
Additional parts bestückt
Colour rot
Contact type Stift
contact surface vergoldet
Rated voltage 250 V
Rated current 5 A
Orientation abgewinkelt
Pin number 10-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin MX
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
