4-794680-6 | AMP

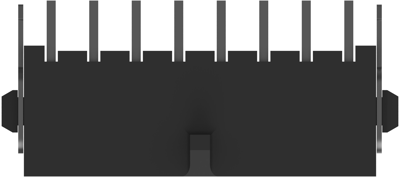

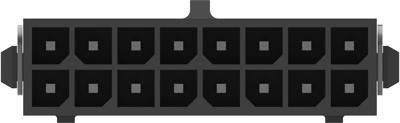

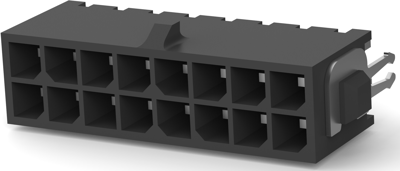

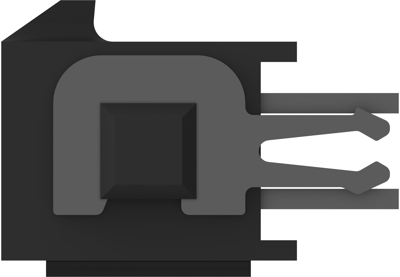

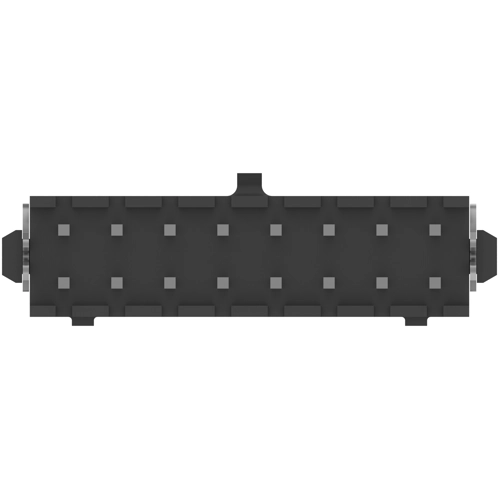

Pin header, 16 pole, pitch 3 mm, straight, black, 4-794680-6
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Connection System, 4-794680-6, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 16 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: straight
- Number of positions: 16
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 16 pole | |
| Grid | 3 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
