440054-2 | AMP

Pin header, 2 pole, pitch 2 mm, straight, natural, 440054-2

Order No.: 36P9985
EAN: 4099889951059
MPN:
440054-2

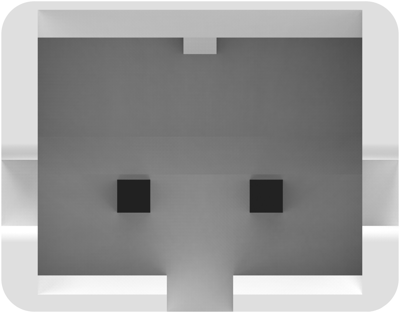

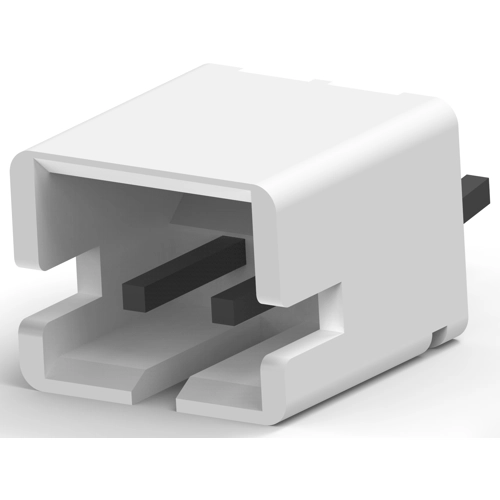

440054-2 AMP PCB Connection Systems Image 1

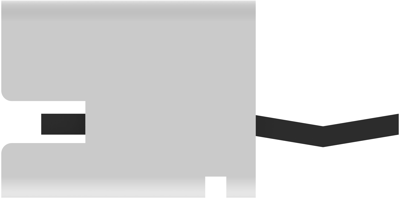

440054-2 AMP PCB Connection Systems Image 2

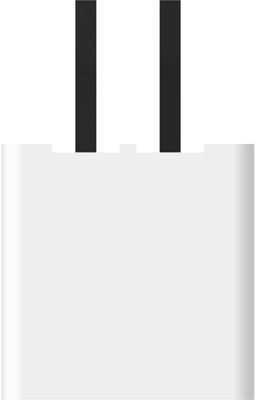

440054-2 AMP PCB Connection Systems Image 3

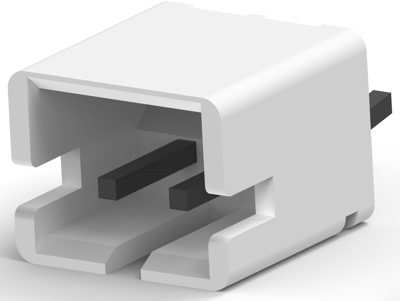

440054-2 AMP PCB Connection Systems Image 4

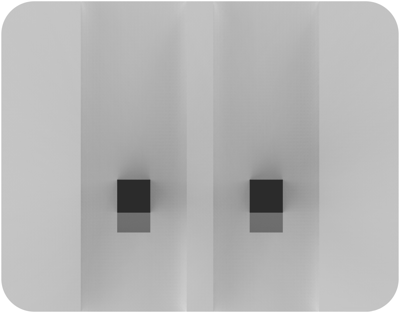

440054-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0476 € *
Available: 0 pcs.
Available in 5 Days: 56,138 pcs.
Leadtime: 6 Weeks **
Total Price:
238.00 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0476 €
11000 pcs.
0.0417 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 440054-2, AMP

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Crimpanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung unbestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 3 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 2 mm
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
