440129-6 | AMP

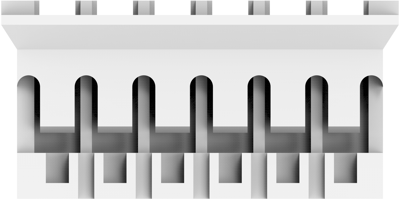

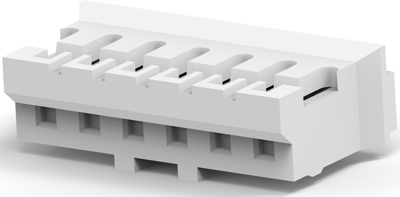

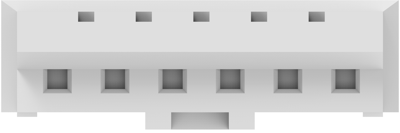

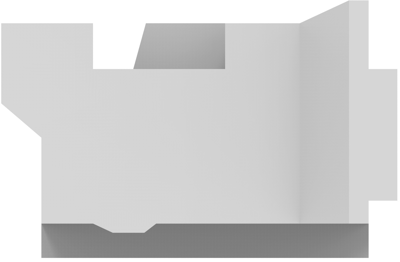

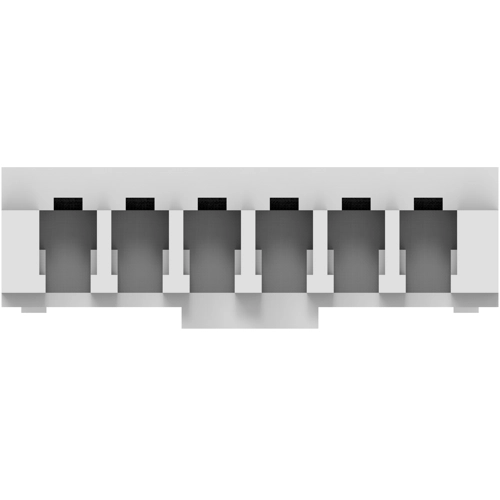

Socket housing, 6 pole, pitch 2 mm, straight, natural, 440129-6

Order No.: 37P1009
EAN: 4099889951196
MPN:
440129-6
440129-6 AMP PCB Connection Systems Image 1
440129-6 AMP PCB Connection Systems Image 2
440129-6 AMP PCB Connection Systems Image 3
440129-6 AMP PCB Connection Systems Image 4
440129-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0666 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
799.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.0666 €

PCB Connection System, 440129-6, AMP

Wire-to-Board, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 6
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse
Nennspannung 250 V
Nennstrom 3 A
Orientierung gerade
Polzahl 6-polig
Rastermaß 2 mm
Logistics
Ursprungsland IN
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
