440146-2 | AMP

Socket housing, 2 pole, pitch 1.25 mm, straight, natural, 440146-2

Order No.: 37P1063
EAN: 4099889951691
MPN:
440146-2

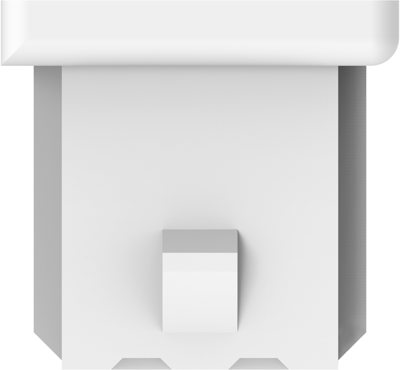

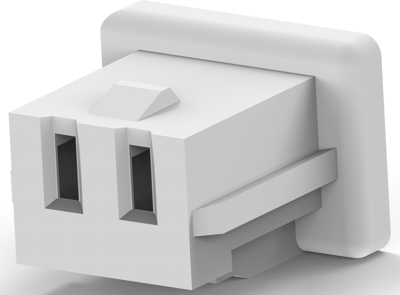

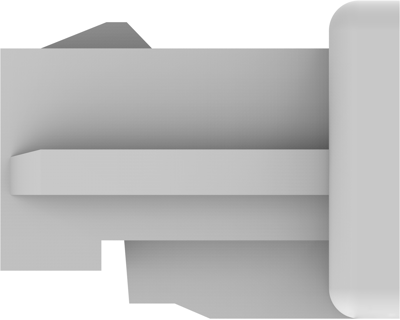

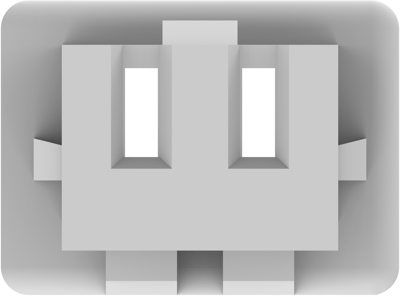

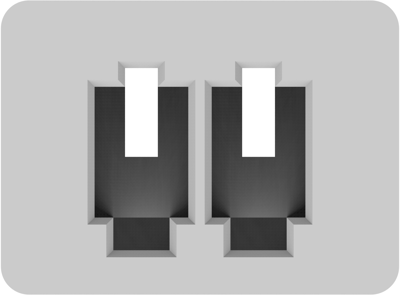

440146-2 AMP PCB Connection Systems Image 1
440146-2 AMP PCB Connection Systems Image 2
440146-2 AMP PCB Connection Systems Image 3
440146-2 AMP PCB Connection Systems Image 4
440146-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0738 € *
Available: 0 pcs.
Available in 5 Days: 57,174 pcs.
Leadtime: 10 Weeks **
Total Price:
221.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.0738 €

PCB Connection System, 440146-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
  • Insulation Resistance: 100 MΩ
  • Centerline (Pitch): 1.25 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse
Nennspannung 100 V
Nennstrom 1 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 1.25 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
