440146-9 | AMP

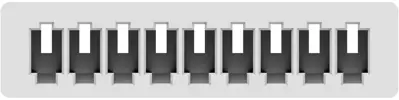

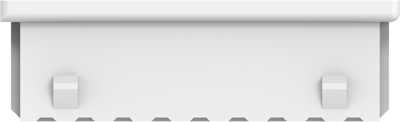

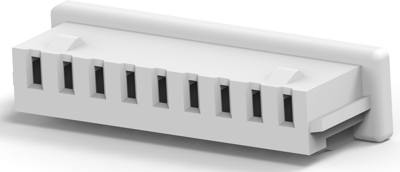

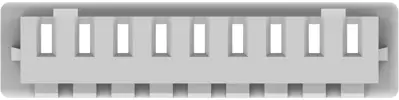

Socket housing, 9 pole, pitch 1.25 mm, straight, natural, 440146-9
Order No.: 37P1070
EAN: 4099889951752
MPN:
440146-9
Unit Price (€ / pc.)
0.1273 € *
Available: 0 pcs.
Available in 5 Days: 13,741 pcs.
Leadtime: 11 Weeks **
Total Price:
203.73 € *
Price list
Quantity
Price per unit*
1600 pcs.
0.1273 €
4000 pcs.
0.1249 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 440146-9, AMP
Wire-to-Board, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: natural
- Number of positions: 9
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 100 MΩ
- Centerline (Pitch): 1.25 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 100 V | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 9-polig | |
| Rastermaß | 1.25 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
