5-102975-4 | AMP

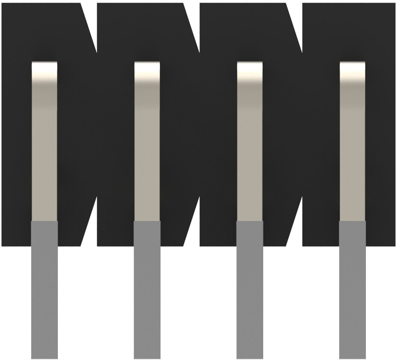

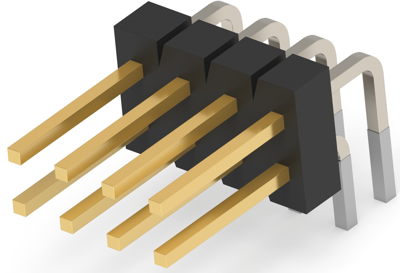

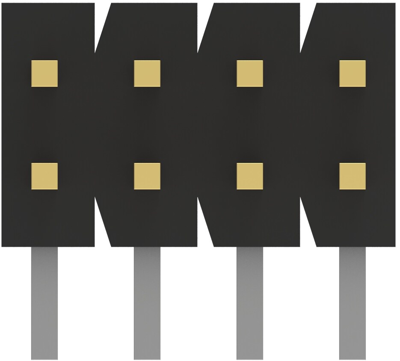

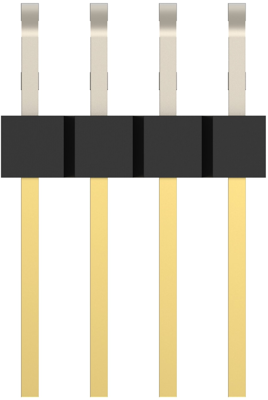

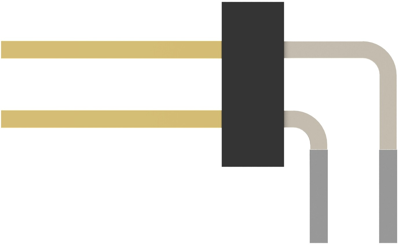

Pin header, 8 pole, pitch 2.54 mm, angled, black, 5-102975-4
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Available in 5 Days: 1,400 pcs.
Leadtime: 25 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
70 pcs.
1.3447 €
350 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-102975-4, TE Connectivity
Board-to-Board, Printed Circuit Board, Breakaway, Right Angle, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: angled
- Number of positions: 8
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | Yes | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
