5-103639-2 | AMP

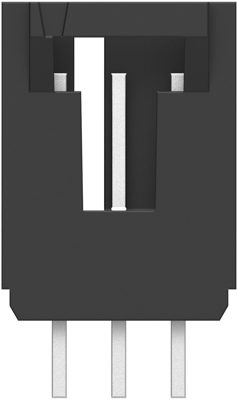

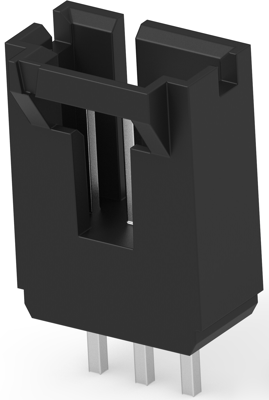

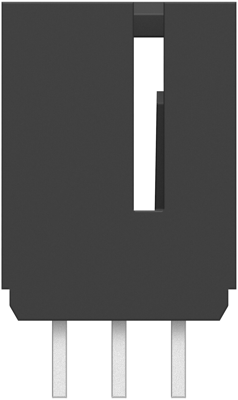

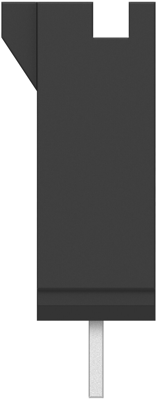

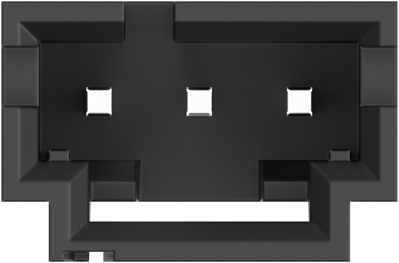

Pin header, 3 pole, pitch 2.54 mm, straight, black, 5-103639-2
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 33 Weeks **
PCB Connection System, 5-103639-2, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Breakable | No | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
