5-103735-9 | AMP

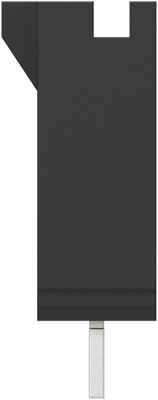

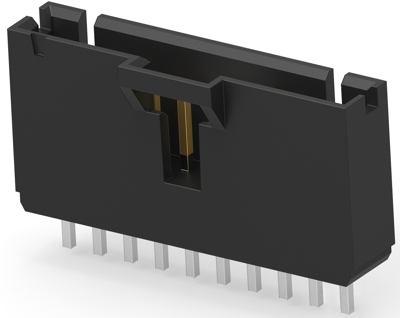

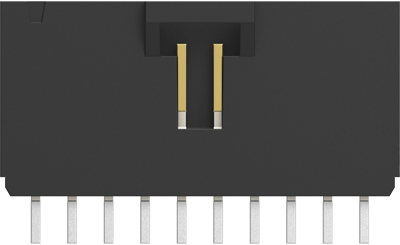

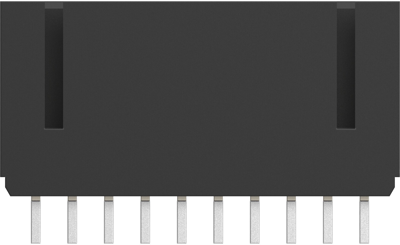

Pin header, 10 pole, pitch 2.54 mm, straight, black, 5-103735-9
Unit Price (€ / pc.)
2.8560 € *
Available: 0 pcs.
Available in 5 Days: 2,934 pcs.
Leadtime: 33 Weeks **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6180 €
50 pcs.
2.3562 €
100 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-103735-9, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Breakable | No | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
