5-103904-6 | AMP

Pin header, 7 pole, pitch 2.54 mm, angled, black, 5-103904-6

Order No.: 37P6839
EAN: 4099889963410
MPN:
5-103904-6
Series: AMPMODU

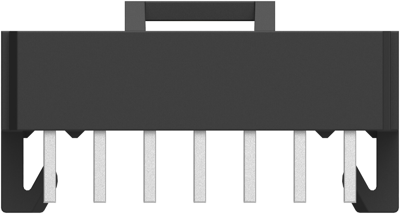

5-103904-6 AMP PCB Connection Systems Image 1

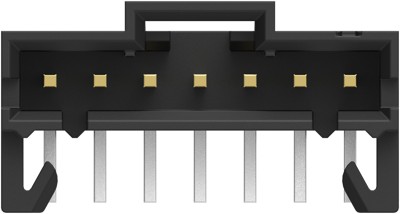

5-103904-6 AMP PCB Connection Systems Image 2

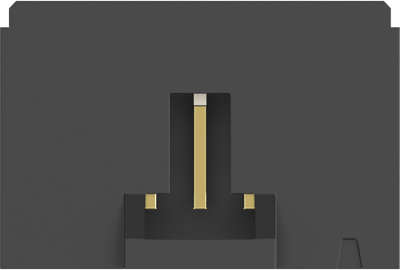

5-103904-6 AMP PCB Connection Systems Image 3

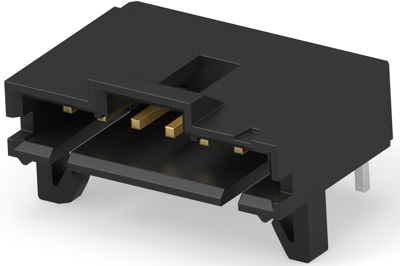

5-103904-6 AMP PCB Connection Systems Image 4

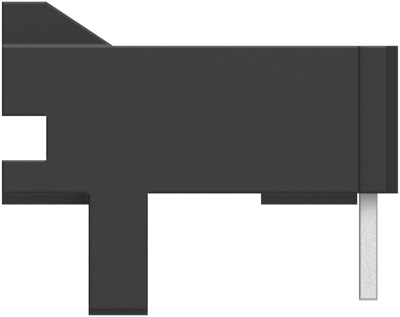

5-103904-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Available: 0 pcs.
Available in 5 Days: 3,744 pcs.
Leadtime: 33 Weeks **
Total Price:
2.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.0111 €

PCB Connection System, 5-103904-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 7
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennstrom 3 A
Orientierung abgewinkelt
Polzahl 7-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland JP
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
