5-104652-1 | AMP

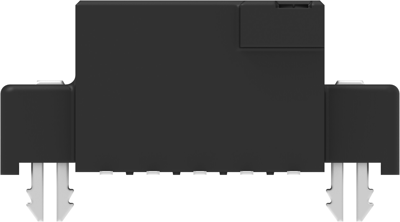

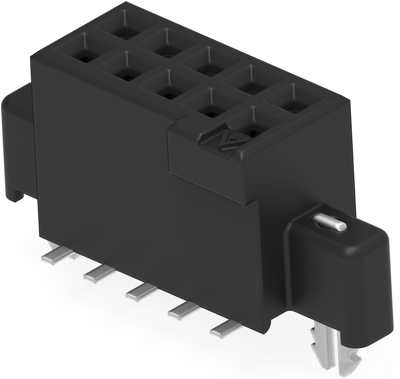

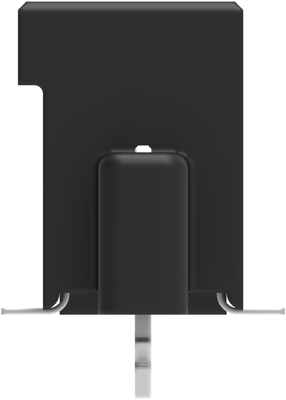

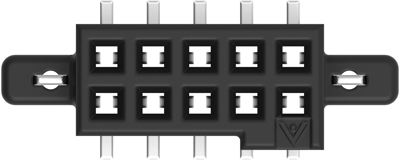

Socket header, 10 pole, pitch 1.27 mm, straight, black, 5-104652-1
Unit Price (€ / pc.)
6.0452 € *
Available: 0 pcs.
Available in 5 Days: 1,294 pcs.
Leadtime: 49 Weeks **
PCB Connection System, 5-104652-1, AMP
Board-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: LCP - GF (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-53.8 – 157 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 1.27 mm [0.05 in]
- PCB Mount Retention: With
Technical specifications
| Ausführung | Buchsenleiste | |
| Kontaktart | Buchse | |
| Polzahl | 10-polig | |
| Rastermaß | 1.27 mm | |
| Anschluss | SMD | |
| Orientierung | gerade | |
| Verriegelung | Ja | |
| Kontaktoberfläche | vergoldet | |
| Anschlussoberfläche | verzinnt | |
| Nennspannung | 30 V | |
| Nennstrom | 500 mA | |
| Bestückung | bestückt | |
| Anzahl der Reihen | 2 | |
| Brechbar | No | |
| Farbe | schwarz |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
