5-104895-1 | AMP

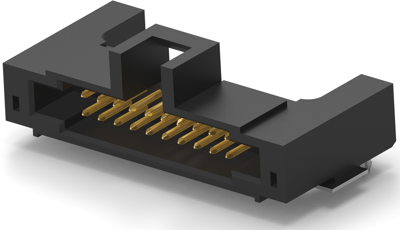

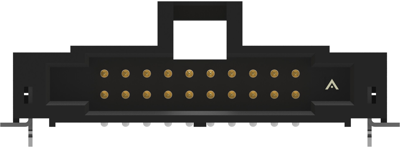

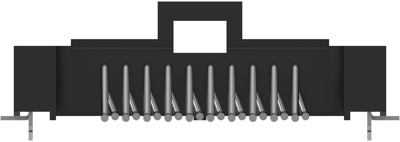

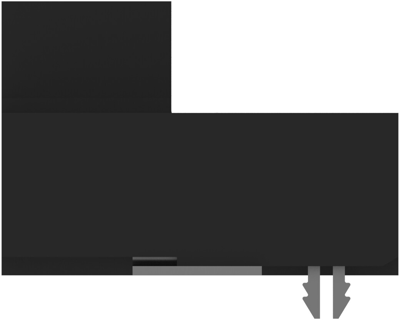

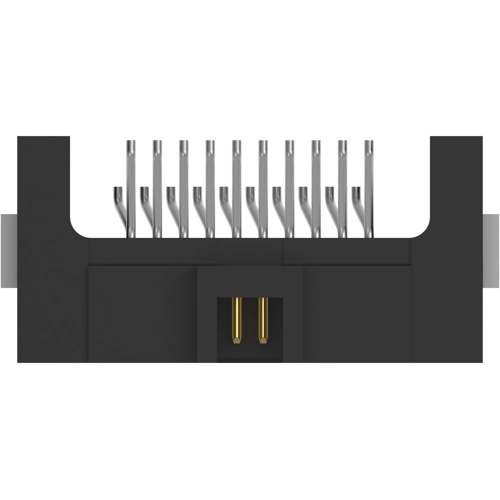

Pin header, 10 pole, pitch 1.27 mm, angled, black, 5-104895-1
Unit Price (€ / pc.)
5.7120 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
274.18 € *
Price list
Quantity
Price per unit*
48 pcs.
5.7120 €
96 pcs.
5.5454 €
500 pcs.
5.2003 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-104895-1, AMP
Board-to-Board, Printed Circuit Board, Shrouded, Right Angle, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: angled
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 0.5 A
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 1.27 mm [0.05 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 1.27 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 30 V | |
| Rated current | 500 mA | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
