5-147292-1 | AMP

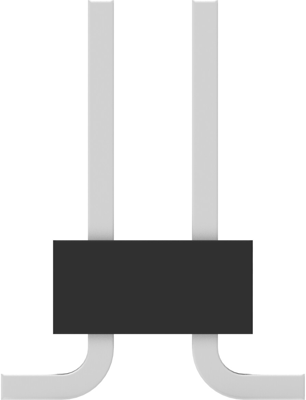

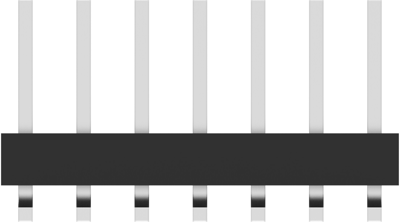

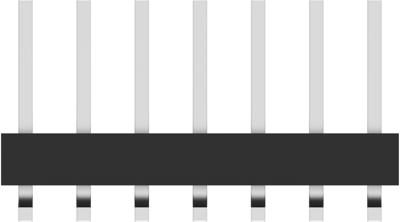

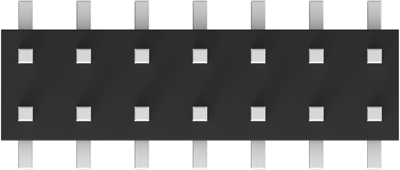

Pin header, 14 pole, pitch 2.54 mm, angled, black, 5-147292-1
Order No.: 37P5390
EAN: 4099889955842
MPN:
5-147292-1
Unit Price (€ / pc.)
2.3681 € *
Available: 0 pcs.
Available in 5 Days: 1,250 pcs.
Leadtime: 35 Weeks **
Total Price:
2.37 € *
Price list
Quantity
Price per unit*
250 pcs.
2.3681 €
500 pcs.
2.2372 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-147292-1, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Right Angle, 14 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: angled
- Number of positions: 14
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | Yes | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 30 V | |
| Rated current | 3 A | |
| Orientation | angled | |
| Pin number | 14 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
